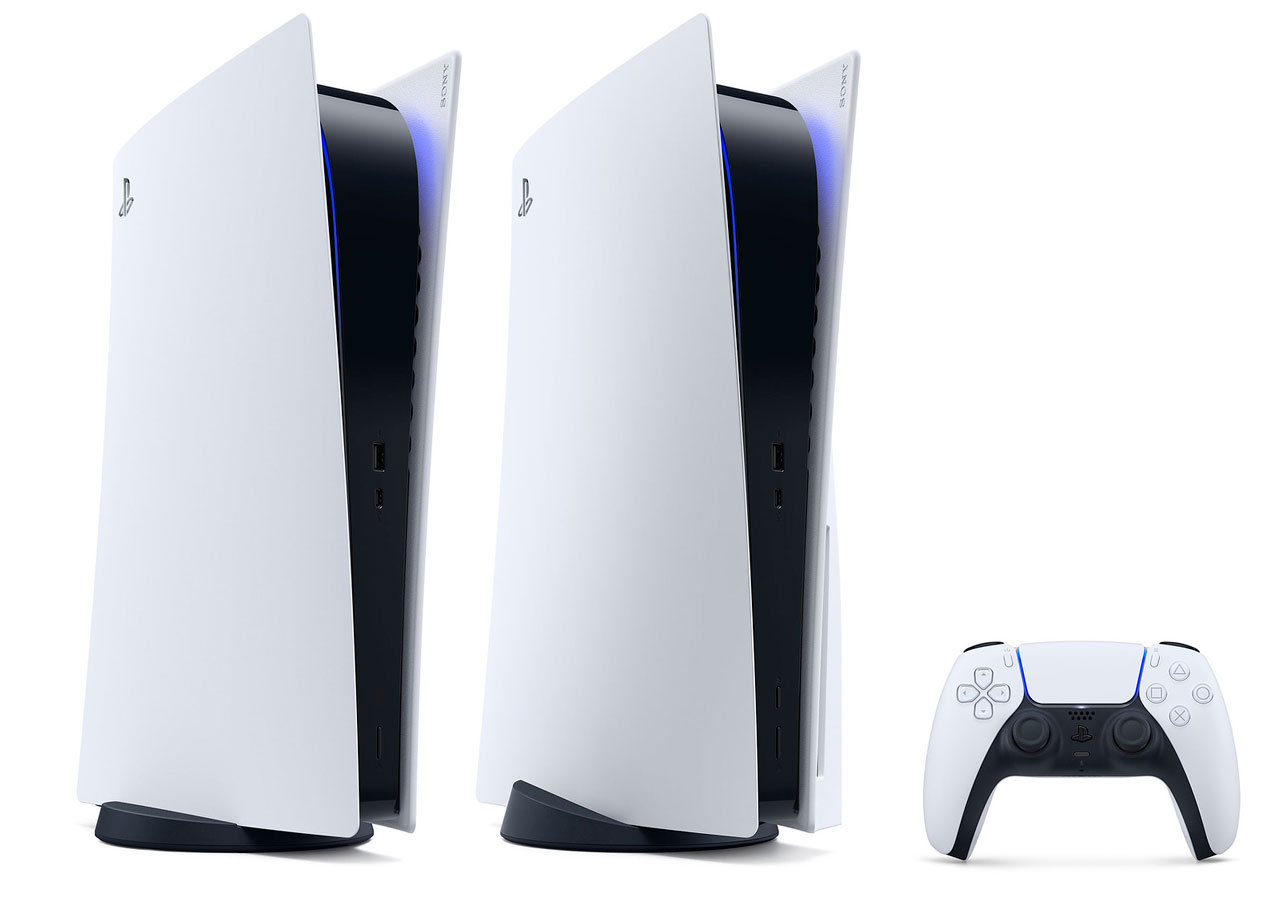

PlayStation 5 Specifications
|
CPU |
x86-64-AMD Ryzen™ “Zen 2” |
|
8 Cores / 16 Threads |
|
|
Variable frequency, up to 3.5 GHz |
|
|
GPU |
AMD Radeon™ RDNA 2-based graphics engine |
|
Ray Tracing Acceleration |
|
|
Variable frequency, up to 2.23 GHz (10.3 TFLOPS) |
|
|
System Memory |
GDDR6 16GB |
|
448GB/s Bandwidth |
|
|
SSD |
825GB |
|
5.5GB/s Read Bandwidth (Raw) |
|
|
Optical Drive |
Ultra HD Blu-ray (66G/100G) ~10xCAV BD-ROM (25G/50G) ~8xCAV BD-R/RE (25G/50G) ~8xCAV DVD ~3.2xCLV |
|
PS5 Game Disc |
Ultra HD Blu-ray, up to 100GB/disc |
|
Video Out |
HDMI™ OUT port Support of 4K 120Hz TVs, 8K TVs, VRR (specified by HDMI ver.2.1) |
|
Audio |
“Tempest” 3D AudioTech |
|
Dimensions |
PS5: Approx. 390mm x 104mm x 260mm (width x height x depth) (excludes largest projection, excludes Base) PS5 Digital Edition: Approx. 390mm x 92mm x 260mm (width x height x depth) (excludes largest projection, excludes Base) |
|
Weight |
PS5: 4.5kg PS5 Digital Edition: 3.9kg |
|
Power |
PS5: 350W PS5 Digital Edition: 340W |
|
Input/Output |
USB Type-A port (Hi-Speed USB) USB Type-A port (Super-Speed USB 10Gbps) x2 USB Type-C® port (Super-Speed USB 10Gbps) |
|
Networking |
Ethernet (10BASE-T, 100BASE-TX, 1000BASE-T) IEEE 802.11 a/b/g/n/ac/ax Bluetooth® 5.1 |

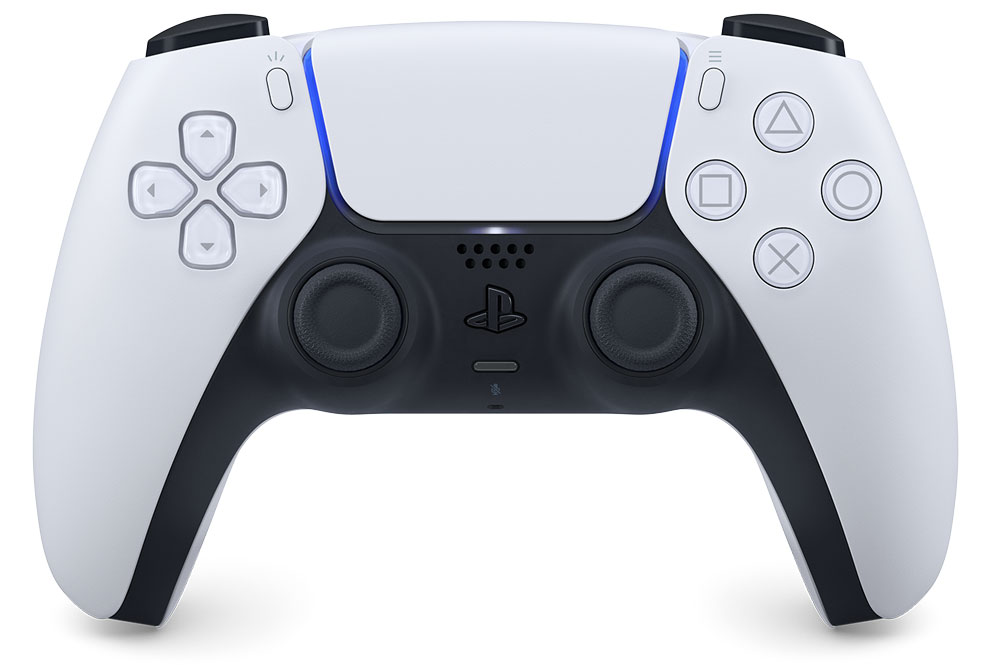

DualSense™ Wireless Controller Specifications
|
Dimensions |
Approx. 160mm x 66mm x 106mm (excludes largest projection) (width x height x depth) |
|
|
Weight |
Approx. 280g |
|
|
Buttons |
PS button, Create button, Options button, Directional buttons (Up/Down/Left/Right), Action buttons (Triangle, Circle, Cross, Square), R1/L1 button, R2/L2 button (with Trigger Effect) Left stick / L3 button, Right stick / R3 button, Touch Pad button, MUTE button |
|
|
Touch Pad |
2 Point Touch Pad, Capacitive Type, Click Mechanism |
|
|
Motion Sensor |
Six-axis motion sensing system (three-axis gyroscope + three-axis accelerometer) |
|
|
Audio |
Built-in Microphone Array, Built-in Mono Speaker, Stereo Headset Jack Output : 48kHz/16bit, Input : 24kHz/16bit |
|
|
Feedback |
Trigger Effect (on R2/L2 button), Vibration (haptic feedback by dual actuators), Indicators (Light bar / Player indicator / MUTE status) |
|
|
Ports |
USB Type-C® port (Hi-Speed USB), Stereo Headset Jack, Charging Terminals |
|
|
Communication |
Wireless |
Bluetooth® Ver5.1 |
|
Wired |
USB connection (HID, Audio) |
|
|
Battery |
Type |
Built-in rechargeable lithium-ion battery |
|
Voltage |
DC 3.65V |
|
|
Capacity |
1,560mAh |
|
